Product overview

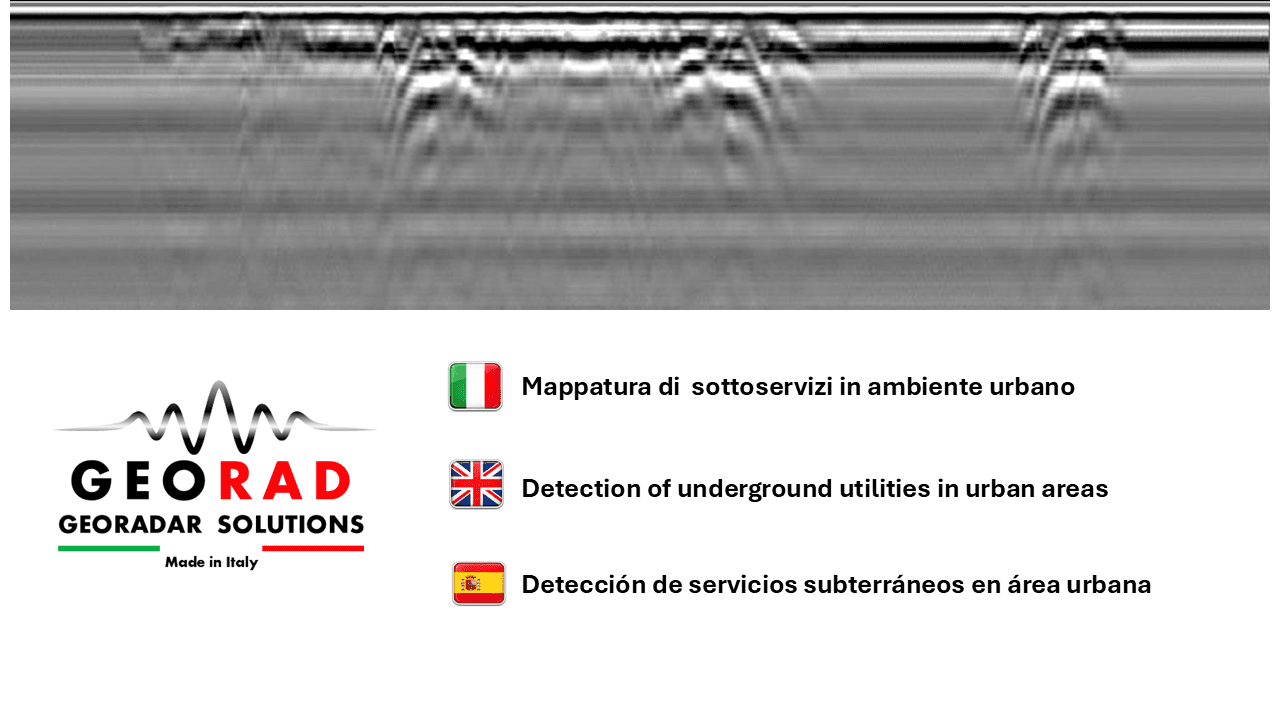

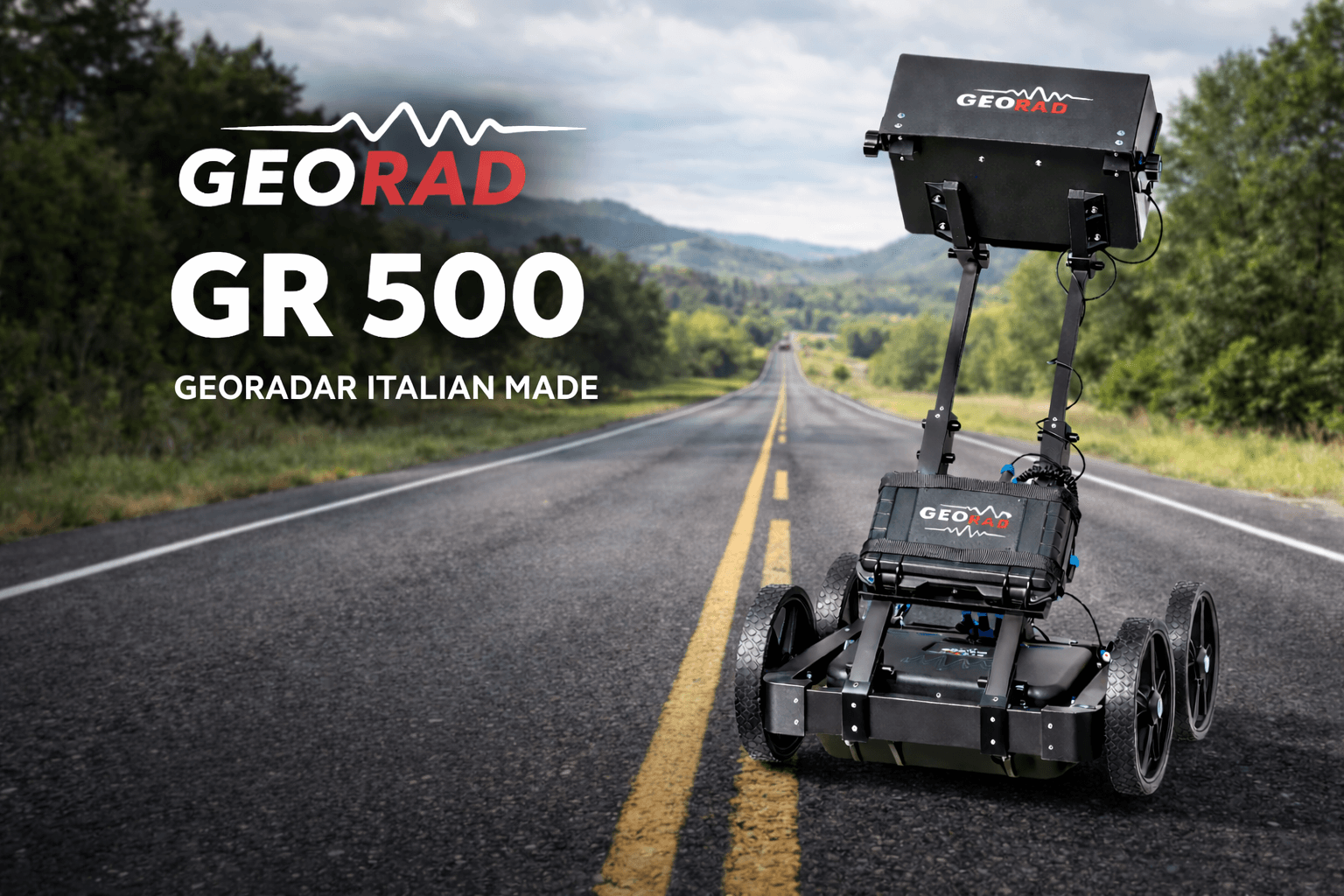

GEORAD GR500 is a high-performance cart-based GPR for utility mapping and urban surveys. With a 500 MHz antenna and ORION™ software, it is versatile and portable. Available in Smart or Pro X versions.
500 MHz frequency
Balanced resolution and depth
Versions
Smart and Pro X

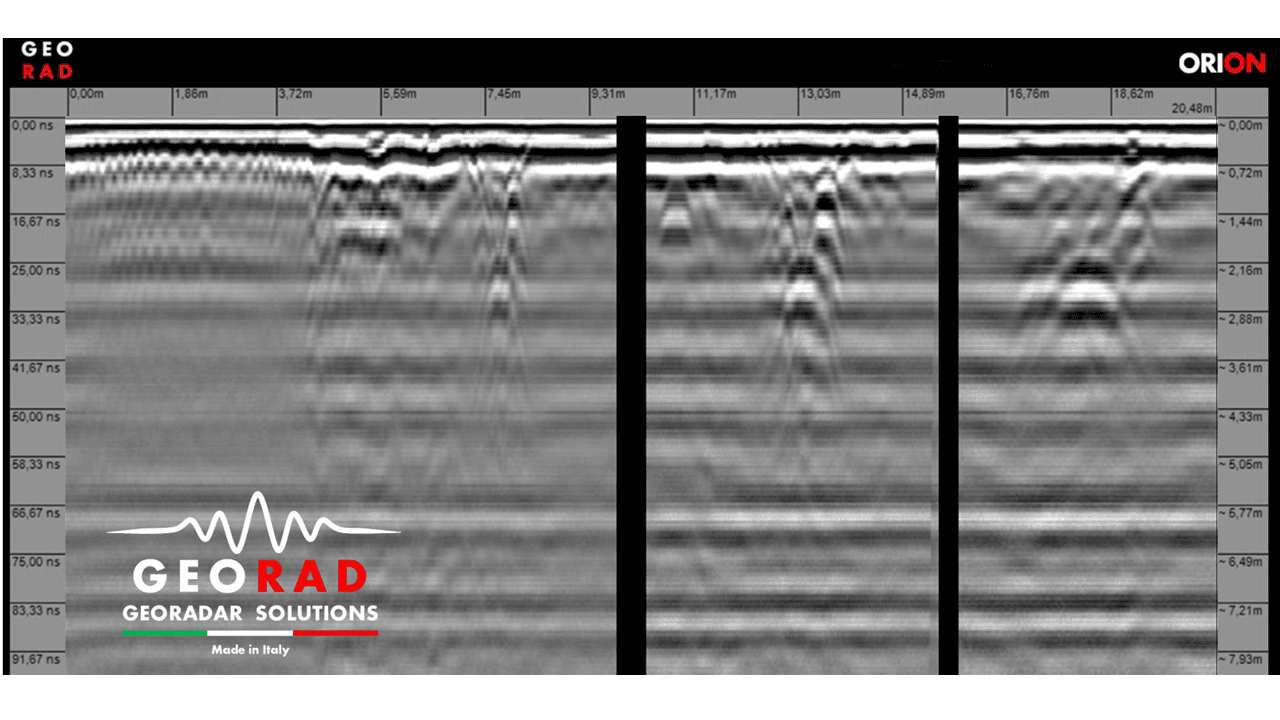

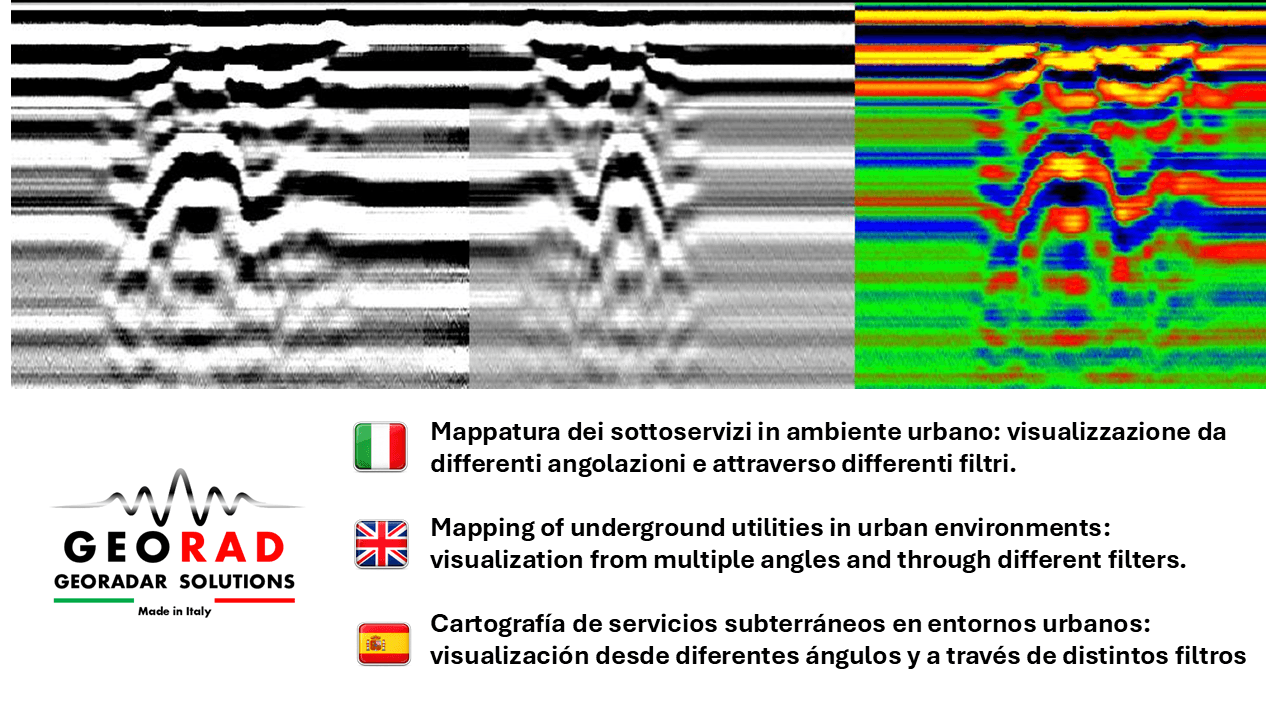

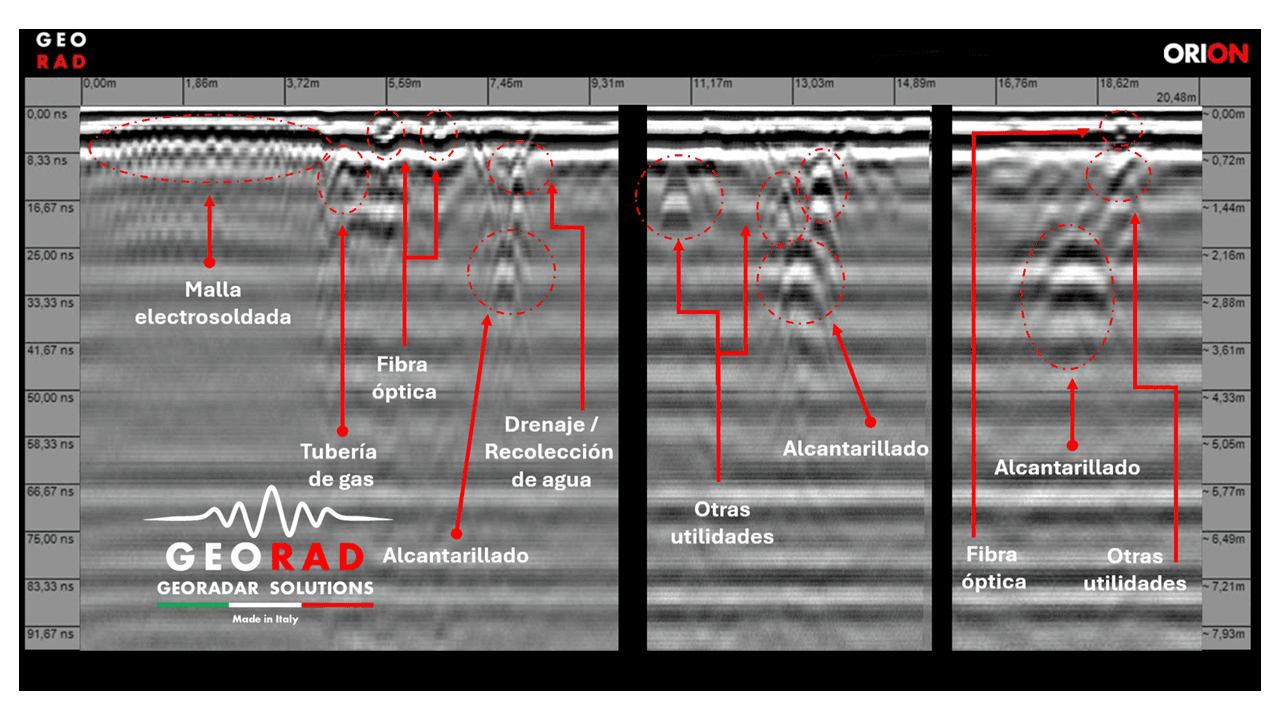

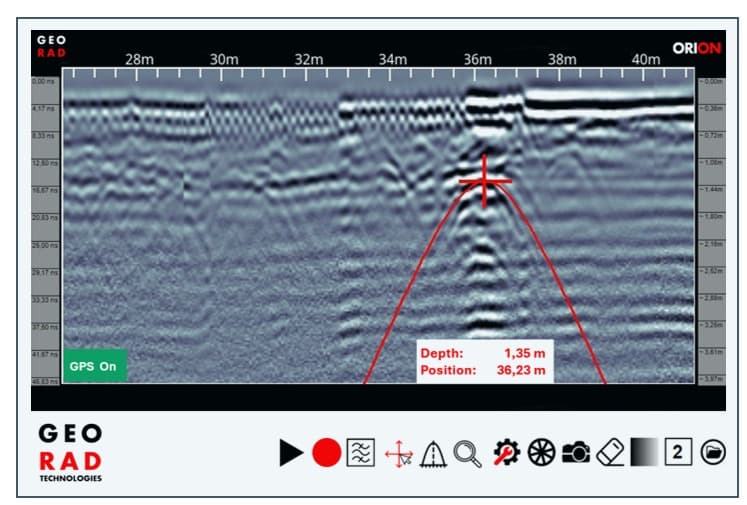

ORION™ software
Real-time filtering and visualization
Use

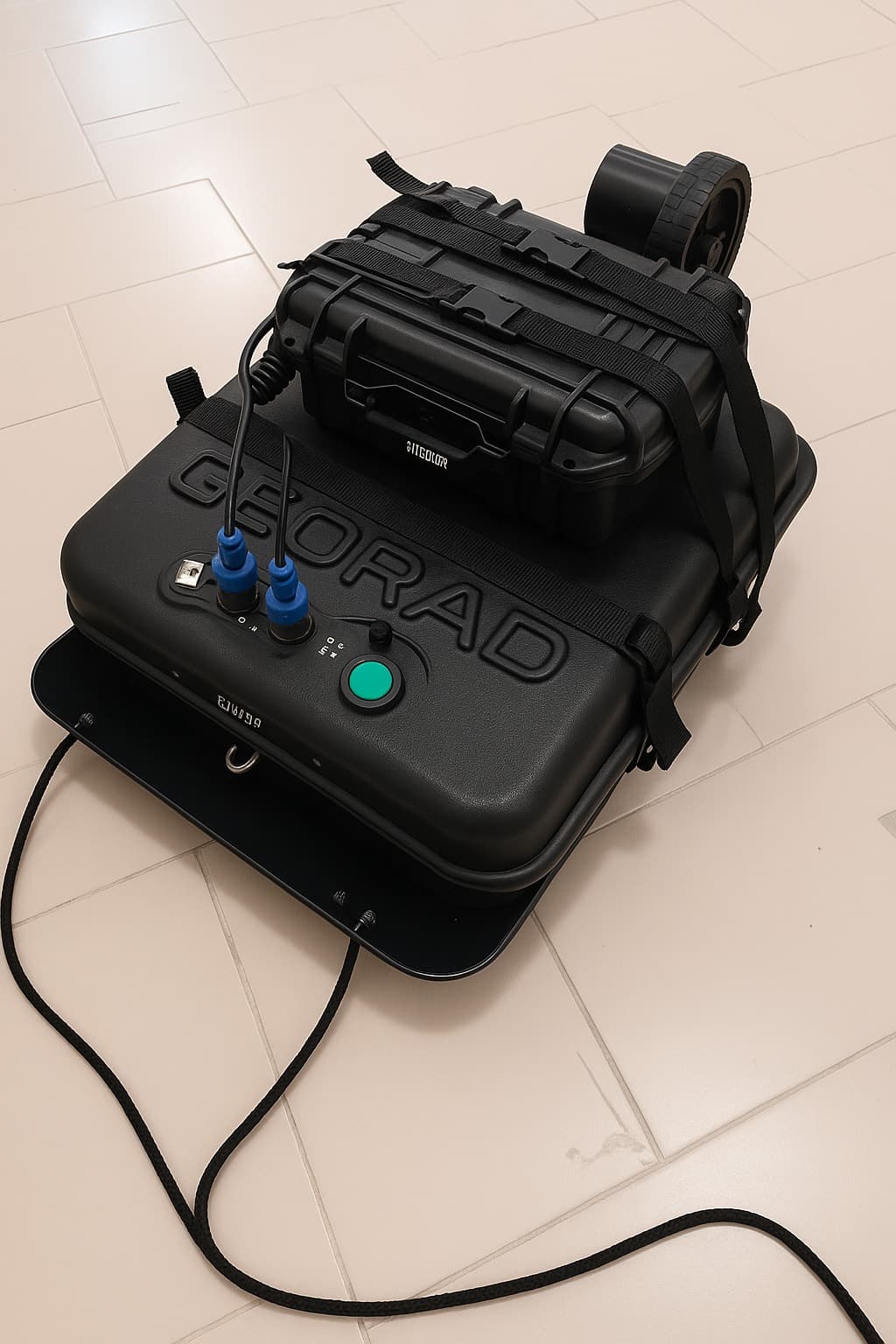

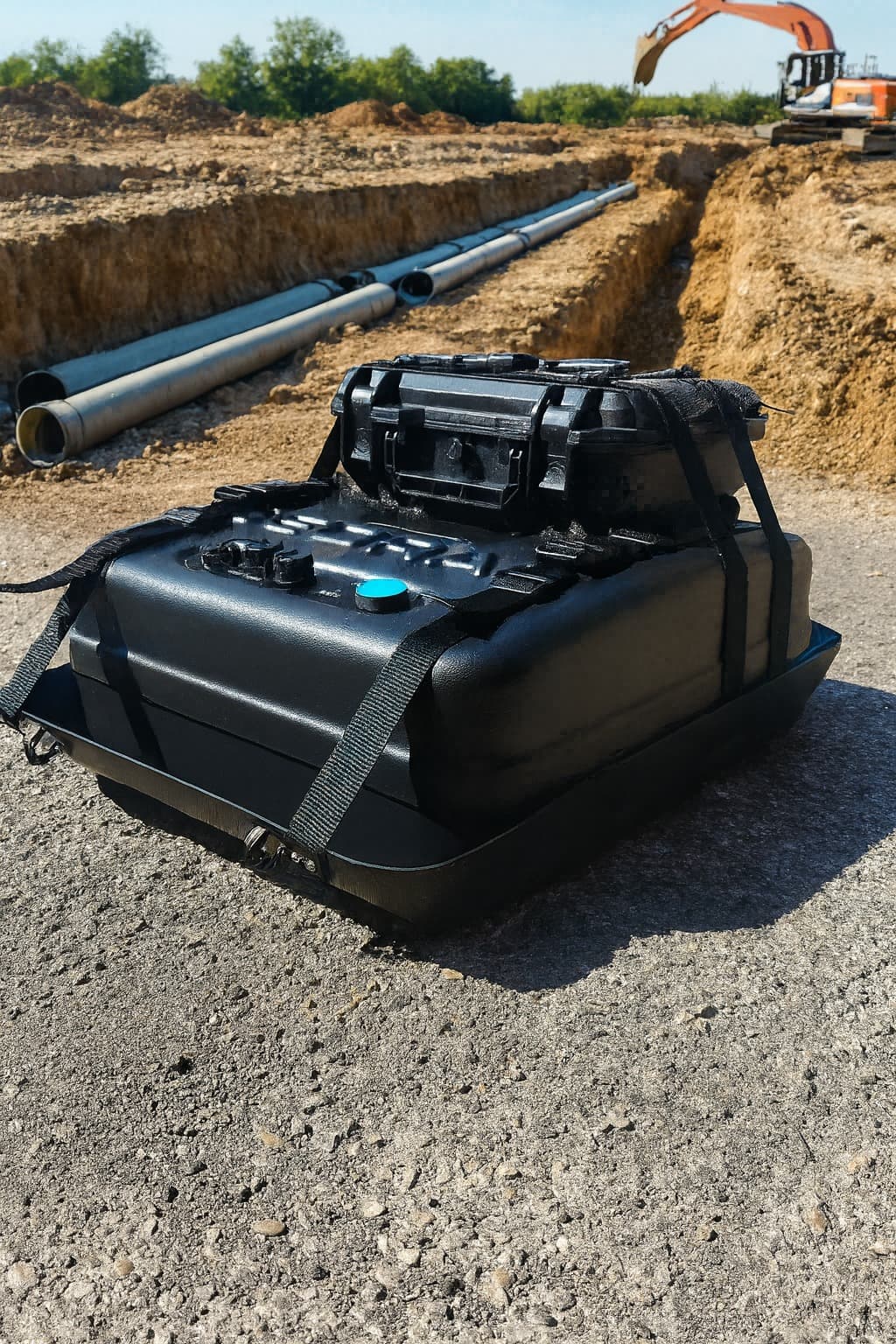

With or without cart
Battery life
Up to 14 h
Warranty
Extendable up to 5 years
Training
Included free of charge
External auxiliary battery
Long-lasting, included
Technical specifications
Full details and technical characteristics of GEORAD GR500
Antenna configuration
Bandwidth
200–800 MHz
Center frequency
500 MHz
Time window
50 ns / 100 ns
Performance
Max depth in dry ground
3–4 m
Max depth in optimal conditions
4–6 m
Dynamic range
120 dB
Horizontal resolution
0.1 m
Vertical resolution
0.05 m
Data display
real time (ORION™)
Physical characteristics
Protection
IP 52
Unit weight
2.7 kg
Cart weight
4.5 kg (Smart) / 8.7 kg (Pro X)
Data processing
ORION™ software
real-time filters
Power system
Power supply
9000 mAh battery – 12 V
Battery life
12–14 h
Charging time
5–10 h
External auxiliary battery
long-lasting, included

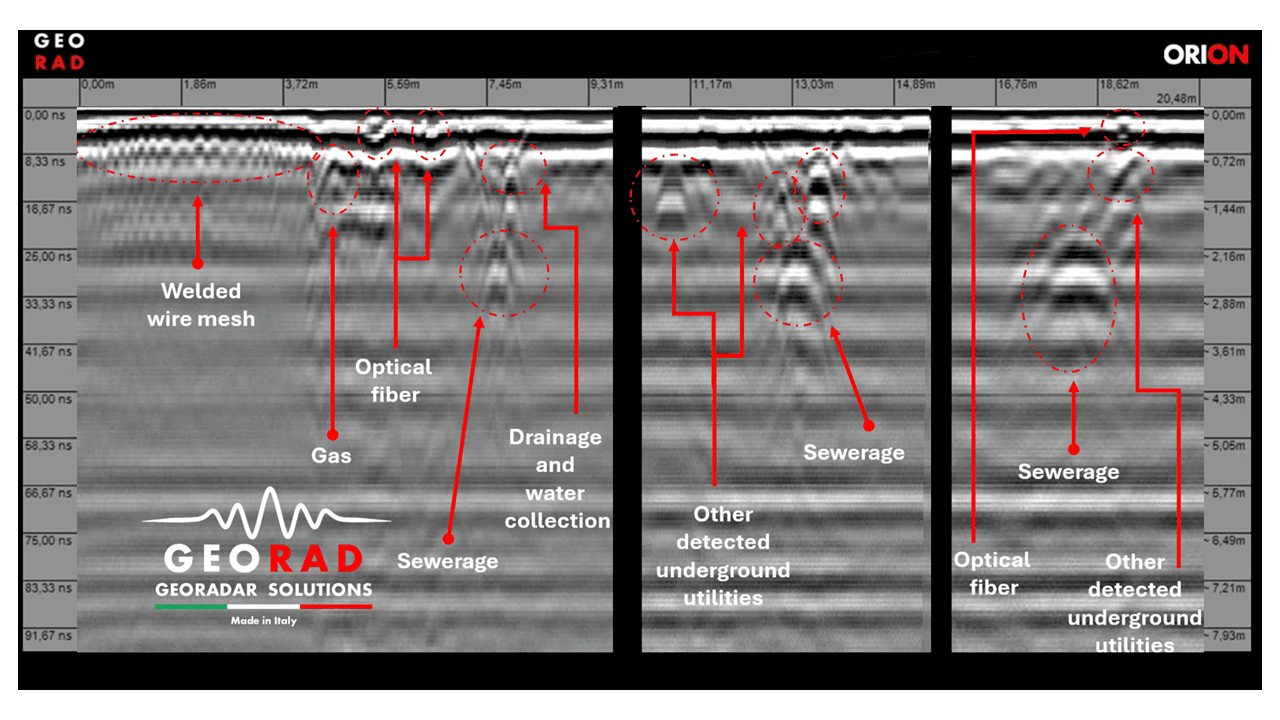

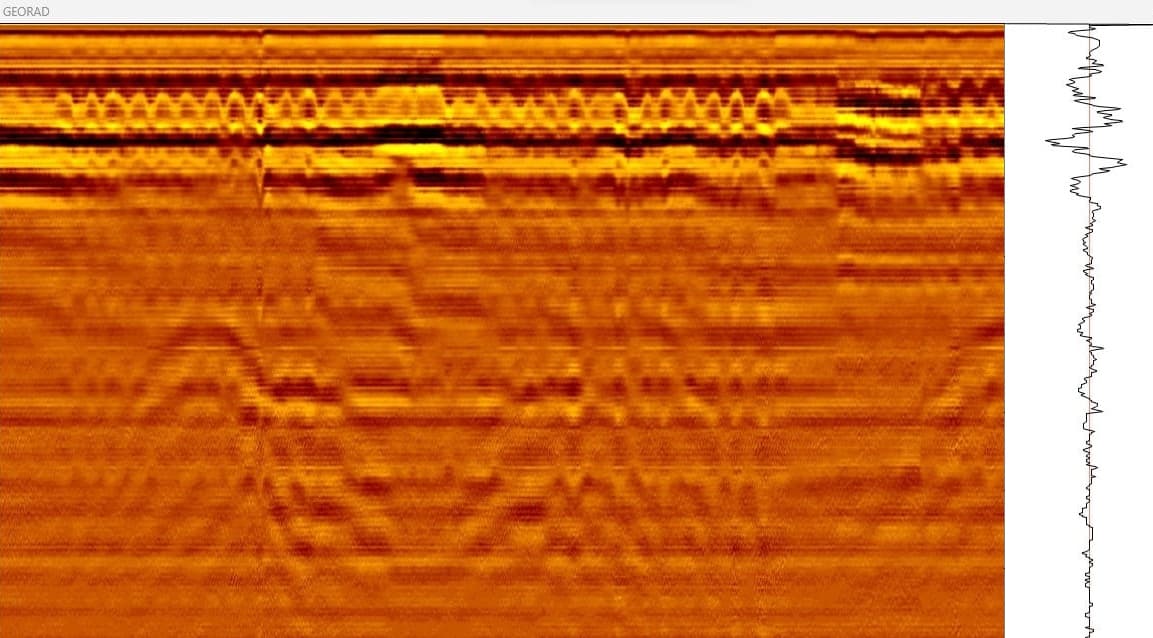

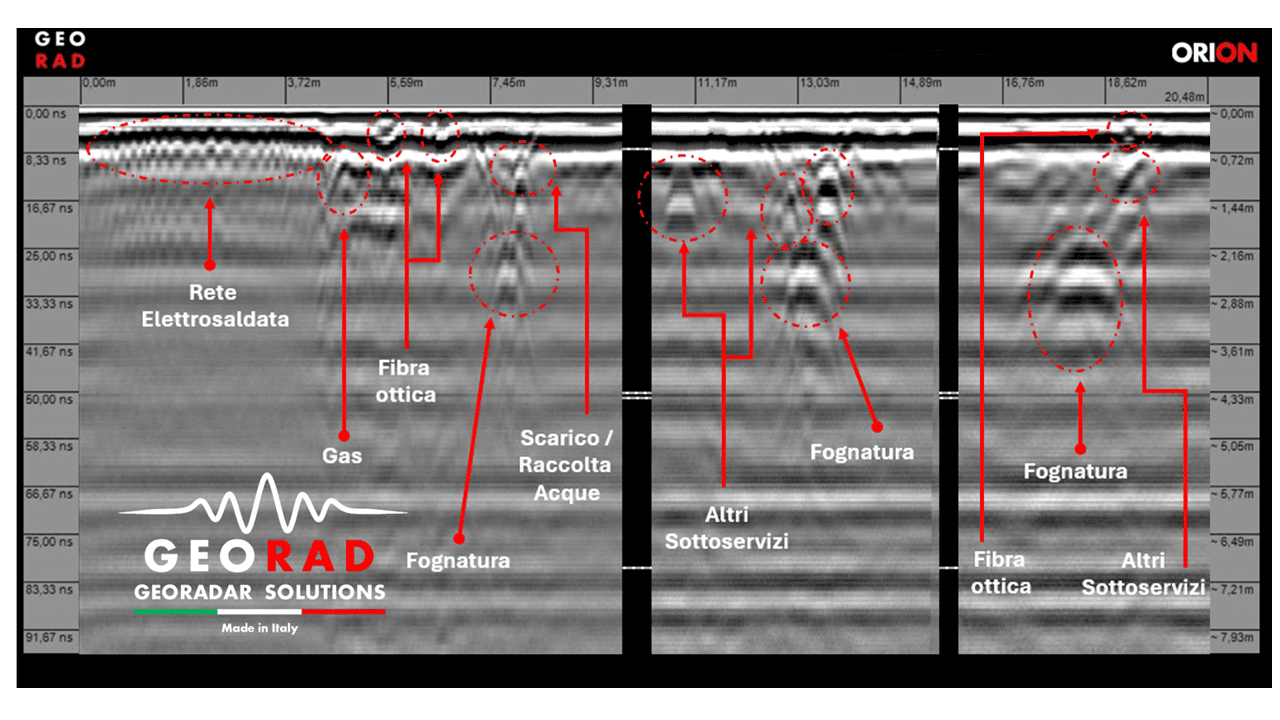

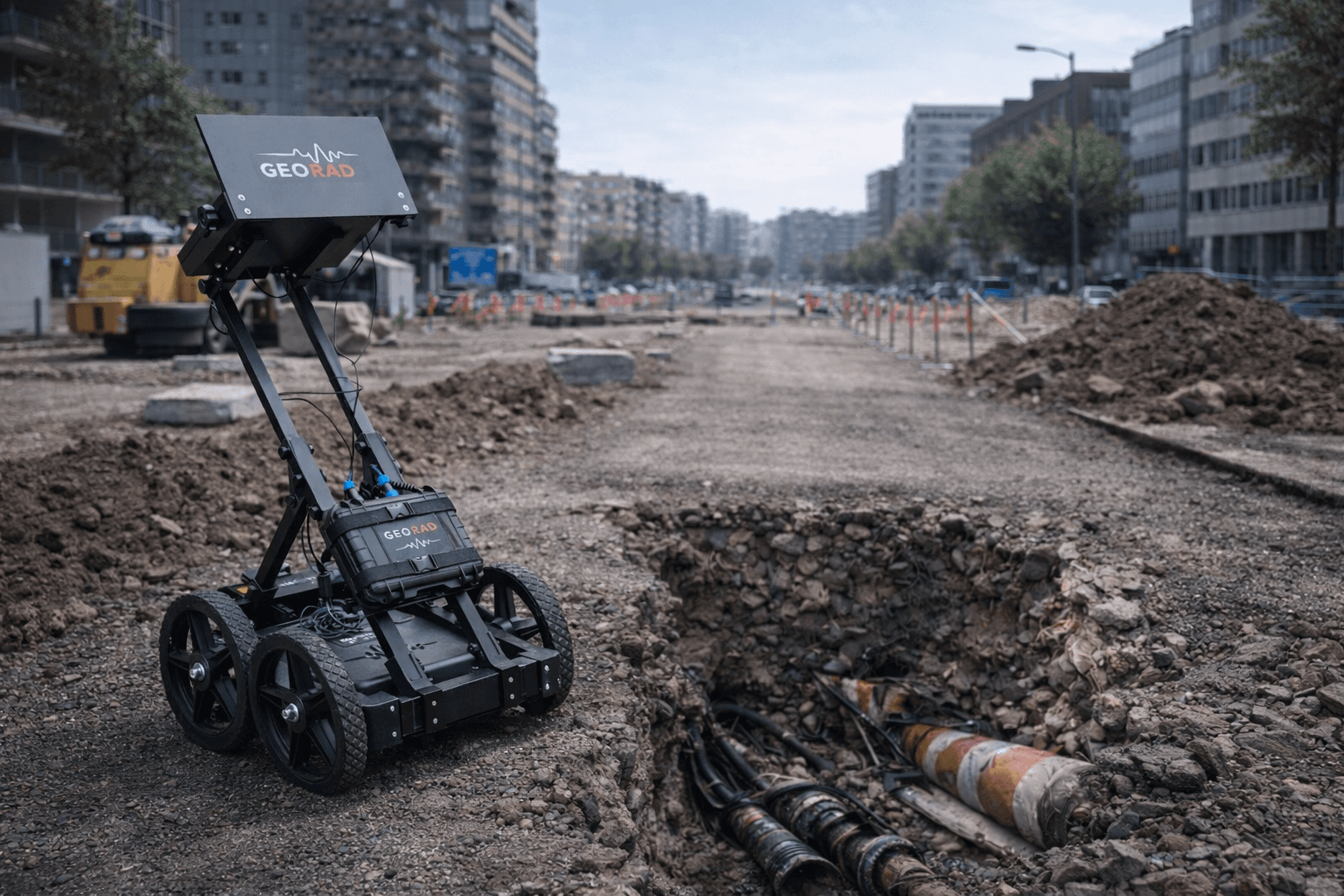

Image gallery
Accessories and equipment
Included accessories
GR500 unit
Smart or Pro X cart
Battery and charger
Long-lasting external auxiliary battery
USB cable
ORION™ software (free license)
Free training
User manual
Protective case/backpack
Warranty extendable up to 5 years
